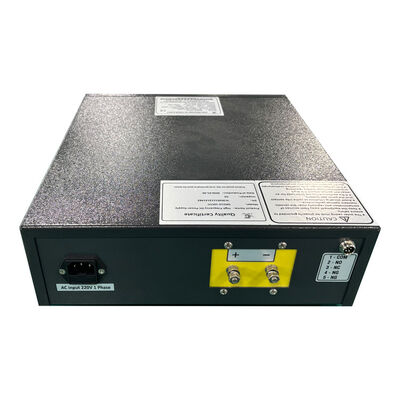

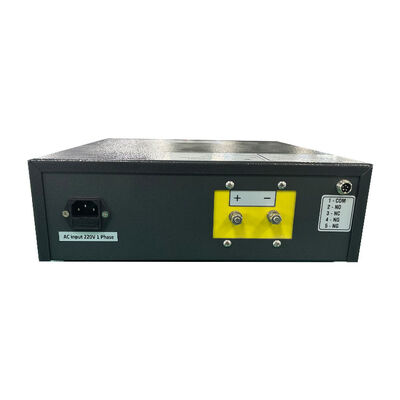

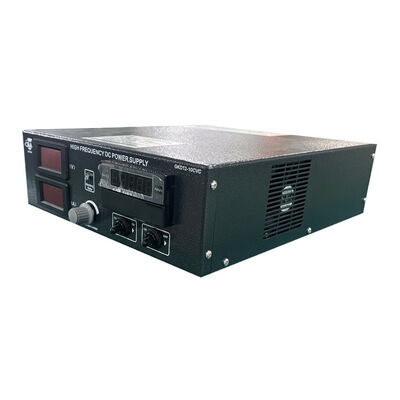

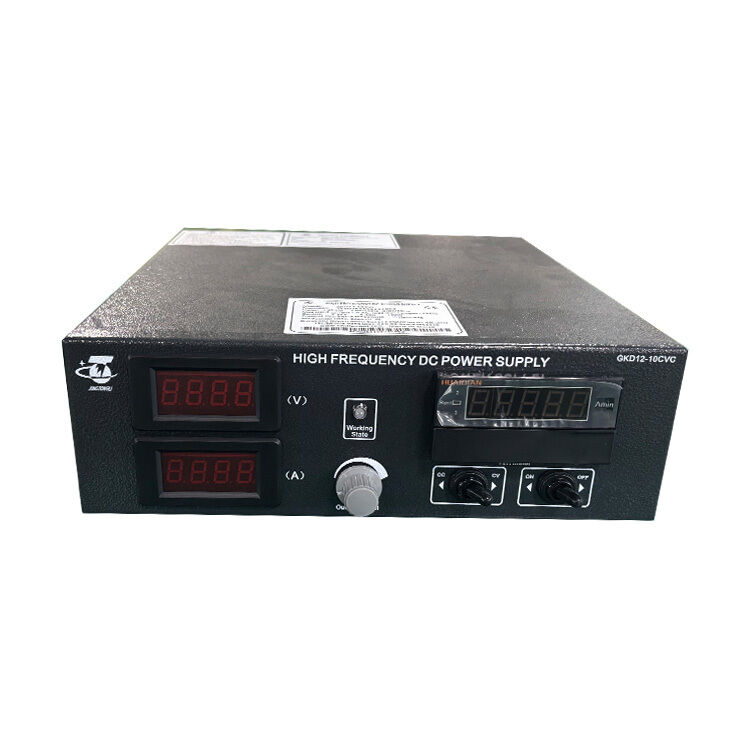

This 12V 10A coating power supply is specifically designed for small-scale coating and surface treatment. It operates on 220V household AC power, making it easy to connect and ideal for use in small workshops, laboratories, or small production lines.

It outputs stable and uniform current, which can make the plating layer stronger and the effect more even. It is suitable for processes such as gold plating, silver plating, nickel plating, and copper plating, which do not require too much current.

Common applications include: Jewelry plating, hardware plating, electronic component surface treatment, laboratory plating testing, or research and development of small plating tanks or pilot production lines

Fully manual operation allows for the adjustment of voltage and current at any time according to different coating needs, flexibly matching various coating solutions and materials. The compact body doesn't take up much space. If you need a reliable, affordable, and easy-to-use coating power supply, this is a great choice.

• Input Power: single-phase 220V AC ±10%, 50/60Hz
• Output Capability:
  • Voltage: DC 0-12V continuously adjustable
  • Current: DC 0-10A continuously adjustable
  • Power: Max.120W (12V *10A)
• Regulation Accuracy: Voltage ±1%, Current ±1%
• Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
• Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
• Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
• Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
• Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
• Operating Temperature: -10℃ to +50℃
• Protection Rating: IP21 (dust and drip-proof)

• Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
• Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
• Compact Design: Space-saving and lightweight, suitable for workshops or labs.
• Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
• High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

• Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
• Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
• Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
• R & D & Education: Electrochemical experiments in universities and research institutes.
•
•
